Product Description
Universal 4 Corner Air Ride Suspension System Kit, 2600 Series
Shop this universal 4-corner air ride suspension system built around 4 matched 2600 D2 series air springs — unlike our 2500 series kit, which pairs different spring sizes front and rear, this 2600 series setup runs identical springs at all four corners for a more uniform, symmetrical air spring platform.
The system starts with a front shock relocation kit that includes upper mounts, lower mounting bolts, and a pair of gas-charged shocks — necessary on most air ride builds since dropping the front this far means your shocks need repositioning to keep functioning correctly. With all four 2600 D2 series air springs matched, tuning and troubleshooting the system becomes simpler since you're working with one spring spec instead of two. Powering it all is a 1/3 HP compressor rated for 100% duty cycle, backed by a 40 amp relay and a 3-gallon, 5-port stainless steel air tank rated to 1000 PSI max. Control comes through an Active Air pneumatic paddle switch controller — non-electric, with a 150 PSI lighted gauge (white or black face depending on stock) — giving you slow, smooth front-to-back control without complex electronics. A 90-120 PSI pressure switch maintains constant air automatically. The kit includes a 50 ft roll of 1/4" air hose and a complete 1/4 tube fitting pack to connect everything, including a drain plug for the air tank (fittings may vary depending on stock).
Mounting brackets are not included with this universal kit. If you need brackets for a specific vehicle, contact us — we have many variations to match. Given the complexity of a full air ride install, we strongly suggest a professional installer install this kit.
Kit Includes – Universal 4 Corner Air Ride Suspension System, 2600 Series
- Front shock relocation kit with 2 gas-charged shocks
- 4x 2600 D2 series air springs (matched, all four corners)
- 1/3 HP 100% duty cycle compressor with 40 amp relay
- 3-gallon, 5-port stainless steel air tank (1000 PSI max rating)

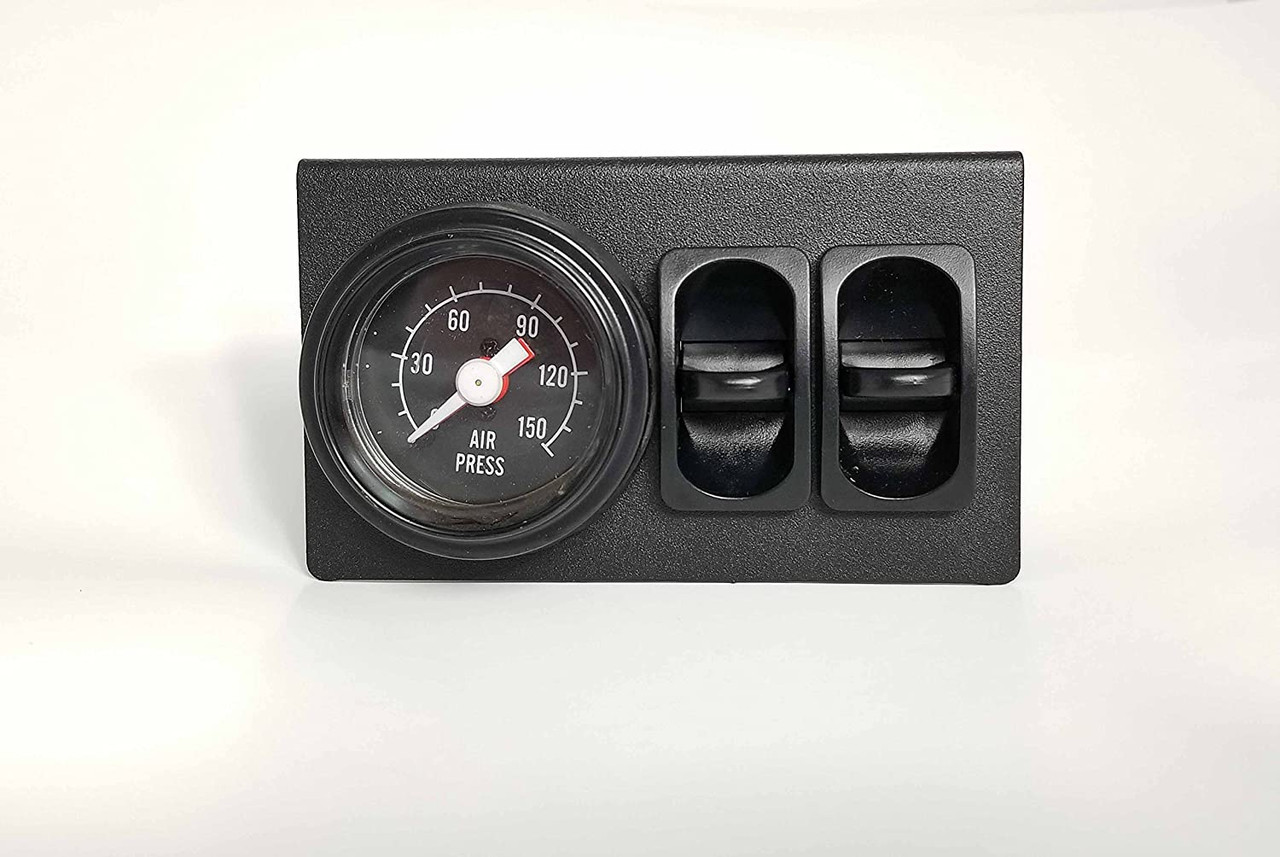

- Active Air pneumatic paddle switch controller with 150 PSI lighted gauge
- 90-120 PSI pressure switch for constant air maintenance
- 50 ft roll of 1/4" air hose with complete fitting pack and tank drain plug
- Mounting brackets not included — contact us for vehicle-specific options
- Designed in the USA
- 1 Year Warranty
Why Choose the 2600 Series Setup
- All four corners run matched 2600 D2 springs, unlike the mixed front/rear sizing on our 2500 series kit
- Simpler tuning and part sourcing with one spring spec across the whole system
- Full front-to-back control from one integrated pneumatic controller and gauge
- 3-gallon stainless tank and real compressor give genuine reserve air, not just switch-and-wait
- Designed in the USA, backed by a 1 Year Warranty
NOTE: We suggest a professional installer with proper equipment to perform the installation of this kit, given the complexity of the full system.
Please note: Neither the manufacturer nor the seller assumes liability for injury, loss, or damage arising directly or indirectly from installing or using this kit. The user assumes all responsibility in connection with this custom suspension kit and its appropriate use.
Prefer the mixed D1/D2 setup instead? See our Universal 4 Corner Air Ride Kit, 2500 Series, or browse the full Custom Air Ride Kits-Universal and Custom Air Ride Kits categories. Check out How to Maintain Your Air Ride Suspension System and Classic Car Builder's Guide to 4-Link Suspension & Air Bags for more on planning your build.
