Chevy GMC C10 73-87 Bolt-On Air Ride Suspension with 4-Link Kit, 2WD
What separates this C10 air ride system from a basic bolt-on kit is the rear end: instead of leaving your factory rear suspension in place, this setup replaces it entirely with a heavy-duty triangulated 4-link, giving you the geometry control that a serious air ride build actually needs. Get the complete package here — front air spring mounts, rear 4-link, four matched air springs, and the full compressor and control system to run it all.
Up front, the kit comes with air spring mounts available either weld-on or bolt-on, though hardware for the bolt-on option isn't included. Out back is where this kit earns its price: a bolt-on heavy-duty triangulated 4-link replaces your factory rear suspension geometry outright, shipped as raw, unpainted metal so you can finish it to match your build. Four 2600 series air springs handle the actual lift and drop at all corners. Running the system is a 1/3 HP, 100% duty cycle compressor with a 40 amp relay and a 3-gallon, 5-port stainless steel tank rated to 1000 PSI. An Active Air pneumatic paddle switch controller — non-electric, with a 150 PSI lighted gauge — gives you smooth manual control front to back, backed by a 120 PSI pressure switch that keeps air topped up on its own. A 50 ft roll of 1/4" air hose and a full fitting pack, including the tank drain plug, round out the install.
One thing to plan for before you order: the bed must be notched to clear the new cross member this kit introduces — factor that into your build timeline. Given the scope of a rear 4-link swap plus a full air management system, we strongly suggest a professional installer handle this one.
What's In the Box – C10 73-87 Bolt-On Air Ride + 4-Link Kit, 2WD
- Front air spring mounts (weld-on or bolt-on; hardware not included)
- Rear bolt-on heavy-duty triangulated 4-link (raw metal, unpainted)
- 4x 2600 series air springs

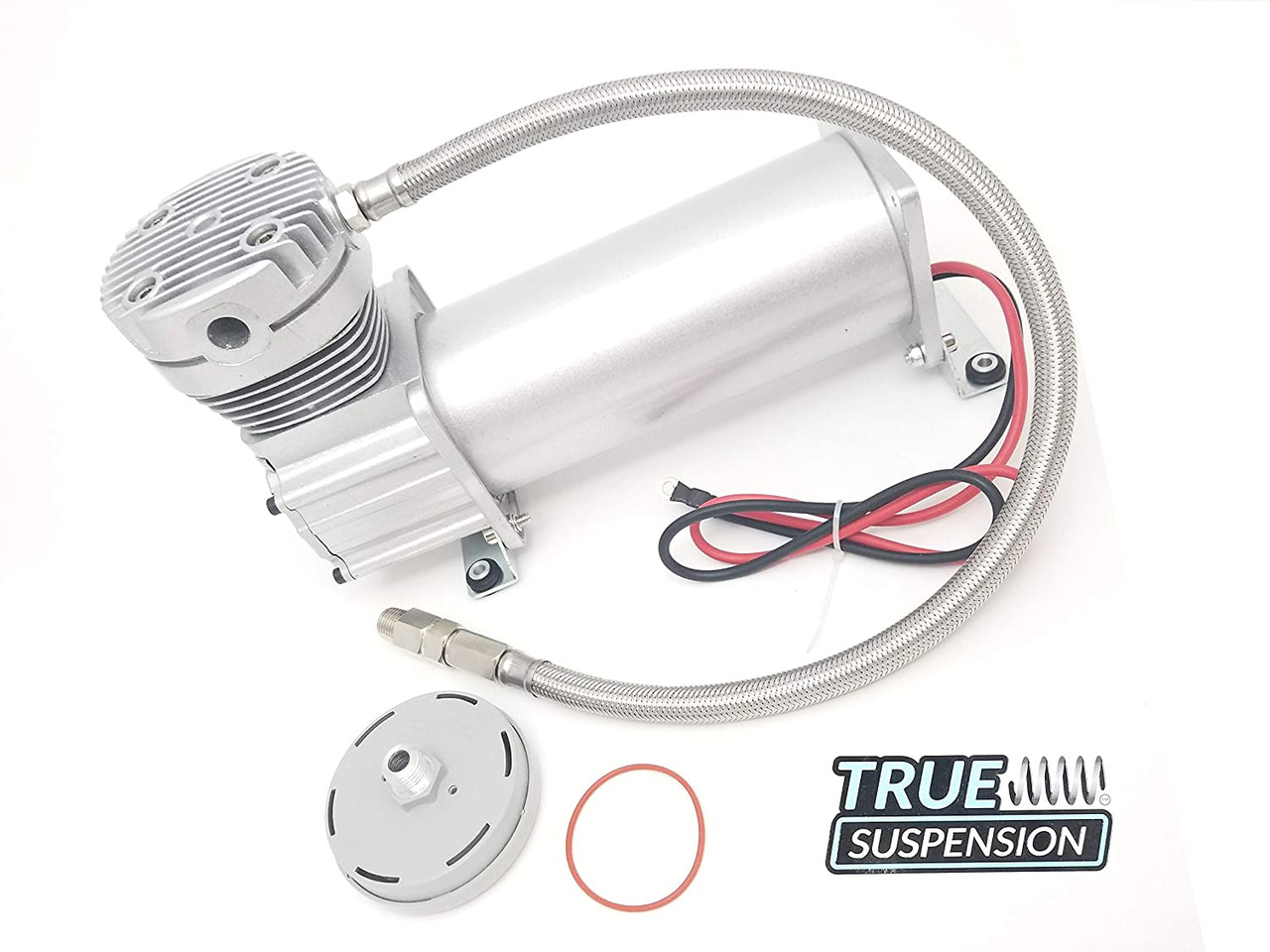

- 1/3 HP 100% duty cycle compressor with 40 amp relay
- 3-gallon, 5-port stainless steel air tank (1000 PSI max rating)
- Active Air pneumatic paddle switch controller with 150 PSI lighted gauge
- 120 PSI pressure switch to maintain constant air
- 50 ft roll of 1/4" air hose with complete fitting pack and tank drain plug
- Compatible with 1973-1987 Chevrolet/GMC C10 Pickup Truck, 2WD
- Designed and made in the USA
- Lifetime Warranty on fabricated parts
The Rear 4-Link Is What Makes This Different
- A true triangulated 4-link replaces the factory rear end, not a bolt-on patch over stock geometry
- All four corners run matched 2600 series springs for consistent handling
- Bolt-on install with welding optional, so you can dial in ride height with maximum carrying capacity
- Requires notching the bed to clear the new cross member — plan for this before starting
- Backed by a Lifetime Warranty on all fabricated parts, made in the USA
NOTE: Bed must be notched to clear the new cross member. We suggest a professional installer with proper equipment to perform the installation of this kit.
Please note: Neither the manufacturer nor the seller assumes liability for injury, loss, or damage arising directly or indirectly from installing or using this kit. The user assumes all responsibility in connection with this custom suspension kit and its appropriate use.
Not ready for a full 4-link swap? Our Universal 4 Corner Air Ride Kit, 2600 Series uses your factory rear geometry instead. Browse the full Chevrolet GMC C10 Custom Air Ride Kits category and Custom Air Ride Brackets & 4link Kits, or read our Classic Car Builder's Guide to 4-Link Suspension & Air Bags for more on planning a 4-link build.
