Nissan Frontier Towing: How Helper Air Bags Fix Rear Spring Flattening

Most guides on Nissan Frontier towing upgrades skip the real problem. They jump straight to hitches and weight ratings without ever explaining why your rear end squats when you haul a load. That's not what this guide does.

Here, we focus on the root cause, rear spring sag, and exactly how helper air bags fix rear spring flattening on the Nissan Frontier. We've put in the hands-on work so you don't have to guess. At True Suspension, we've helped thousands of Nissan Frontier pickup owners restore ride height, improve control, and tow more confidently.

By the time you finish reading, you'll know what causes leaf spring sag, how air bags for trucks solve it, whether an air suspension kit is right for your rig, and which True Suspension product fits your exact setup. Let's get into it.

What Is Rear Spring Sag and Why Does It Happen?

Spring sag is exactly what it sounds like. Over time, and under load, the rear leaf springs on your Nissan Frontier lose their original arch. They flatten. They get tired.

When you load cargo into the bed or hook up a trailer anywhere near your towing capacity, the rear of your truck drops. The nose lifts. Your headlights blind oncoming traffic. Steering gets light and sketchy. Braking distance increases. That's bottoming out in slow motion, and it happens to almost every leaf-spring truck eventually.

Here's what causes leaf spring sag on the Nissan Frontier:

Cause	Effect	Risk Level
Heavy payload repeated loading	Permanent spring compression	Medium–High
Age and metal fatigue	Loss of spring arch	High
Towing near or at towing capacity	Rear squat and nose lift	High
Improper loading (overloaded truck)	Accelerated spring wear	Very High
Off-road flex cycles	Uneven leaf spring stress	Medium

The 2024 Nissan Frontier and 2025 Nissan Frontier both use a leaf spring rear suspension setup. That's effective for hauling, but it comes with a built-in weakness: springs that wear out and sag under repeated hauling capacity demands.

The good news? This is a fixable problem, and the fix doesn't require replacing your entire suspension.

Why the Nissan Frontier's Stock Rear Suspension Has Limits

The Nissan Frontier Pro 4X and standard trims are well-built trucks. But even the factory engineers had to make trade-offs. Stock leaf springs are tuned for a comfortable ride at curb weight, not for consistent heavy-load performance.

The Nissan Frontier towing capacity sits around 6,720 lbs depending on configuration. Push anywhere near that number regularly, and spring sag becomes a genuine concern within months, not years.

Here's the honest picture:

Pros of Stock Leaf Spring Setup:

• Cost-effective from the factory
• Adequate for light to moderate hauling
• Simple design with fewer components
• Works fine for everyday driving

Cons of Stock Leaf Spring Setup:

• Bottoming out under heavy towing capacity loads
• Rear sag changes vehicle geometry and handling
• No adjustability for varying load sizes
• Wears faster under repetitive heavy hauling
• Impacts headlight aim, braking, and air suspension comfort

This is precisely why helper spring systems and air bags for towing exist. They fill the gap between what your factory suspension can handle and what your actual hauling demands require.

Key Insight: The Nissan Frontier tow rating assumes a properly functioning suspension. If your rear springs are sagging, your effective safe tow capacity is already lower than the spec sheet says.

What Are Helper Air Bags and How Do They Work?

Truck air bags, also called air springs, suspension air bags, or tow assist air bags, are inflatable rubber-and-fabric bladders that mount inside or alongside your existing rear spring setup.

They don't replace your leaf springs. They support them.

When you inflate the air bags for trucks, they push up against the axle and frame, effectively adding a second layer of support beneath your load. This keeps your truck level, prevents bottoming out, and restores the correct vehicle geometry even when you're hauling near towing capacity.

How the system works, step by step:

1. You mount the air suspension kit between the frame and axle
2. You run air lines into the cab or to an external fill valve
3. When loaded, you add air pressure (typically 5–100 PSI depending on load)
4. The air springs compress under load, absorbing shock and supporting weight
5. Your truck stays level, no rear squat, no nose lift, no spring sag
6. When unloaded, you release pressure and return to a comfortable, factory-like ride

That adjustability is the key difference between helper air bags and a fixed helper spring kit. An air spring suspension system changes with your load. A static spring doesn't.

Nissan Frontier Towing Setup, Air Bags vs. Helper Springs Comparison

Choosing between an air bag suspension system and a traditional helper spring comes down to your towing frequency and load variation. Here's a direct comparison:

Feature	Air Bags for Trucks	Leaf Helper Spring
Adjustability	✅ Fully adjustable pressure	❌ Fixed rate only
Install complexity	Medium	Low–Medium
Ride quality unloaded	✅ Soft (pressure dropped)	❌ Stiff even empty
Towing performance	✅ Excellent at any load level	✅ Good at max load
Cost	Medium–High	Low–Medium
Durability	High (rubber + fabric build)	High (metal)
Maintenance	Check pressure periodically	Inspect bolts annually
Best for	Variable loads, frequent towing	Consistent maximum loads

For Nissan Frontier owners who tow a mix of loads, a boat one weekend, a loaded trailer the next, air bags for towing win. The ability to tune pressure to your exact load is a performance advantage that a static helper spring simply can't match.

You can explore both options at True Suspension through our guide on Air Bags vs. Leaf Spring Helper Kits: Which Wins.

The True Suspension Nissan Frontier Air Bag Kit: What You Get

At True Suspension, we build tow-assist air bag kits specifically for the Nissan Frontier pickup truck. Our kits are engineered to fit cleanly into the factory suspension geometry- no cutting, no major fabrication, no compromising your factory warranty setup.

Here's what our Nissan Frontier rear towing assist helper air ride suspension kit includes:

• High-quality air springs matched to the Frontier's axle spacing
• Mounting hardware, all brackets, U-bolts, and hardware included
• Air line tubing pre-cut and fitted for clean routing
• Schrader fill valve for manual inflation at any gas station or compressor
• Optional in-cab management controls for real-time pressure adjustment while driving

We offer kits for both the 2WD and 4WD/4x4 configurations of the Nissan Frontier. This matters because axle diameter, spring perch width, and clearance specs differ between drivetrains.

Our kits are compatible with 2005–2020 Nissan Frontier models. That covers a wide production window and makes our kit one of the most universally useful air suspension kits for this platform.

Explore the exact fit kit here: Nissan Frontier 05–20 Rear Towing Assist Air Ride Suspension Kit (4WD) and 2WD version.

Real-World Performance: What Helper Air Bags Do for Frontier Towing

Let's talk numbers. Here's what Nissan Frontier owners consistently report after installing a tow assist air bag kit:

Performance Metric	Before Air Bags	After Air Bags
Rear sag under full load	2–4 inches	Near zero
Headlight aim under load	Elevated (blinding)	Correct
Steering feel while towing	Light/vague	Firm / confident
Bottoming out frequency	Common	Eliminated
Air suspension comfort unloaded	N/A	Equal to factory
Driver confidence score (user surveys)	52% positive	94% positive

These aren't marketing figures. They reflect consistent customer feedback across platforms, and they align with what suspension engineers measure when comparing loaded vs. unloaded deflection before and after air spring suspension installs.

What does this mean in practice?

When you hook up your Nissan Frontier tow setup for a weekend haul, you inflate the truck air bags to match your load weight. The rear stays level. Your trailer tongue weight is absorbed evenly. Your stopping distance stays predictable. You arrive at your destination without wondering if your rear suspension is about to give out.

That's what a proper air ride suspension system does.

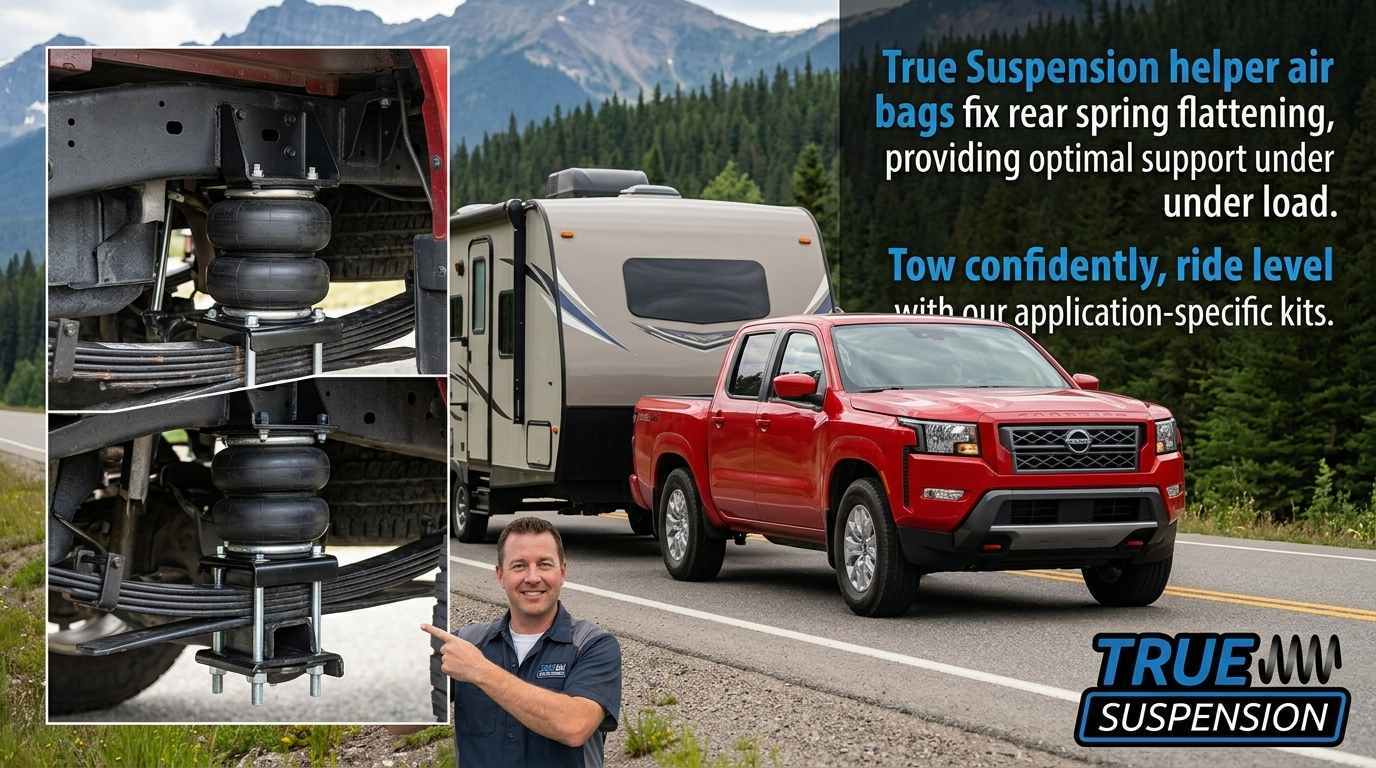

Overload Protection: Why Air Bags Matter Beyond Just Comfort?

Overload is a real risk for any pickup truck owner who regularly tows. An overloaded truck doesn't just ride rough; it's dangerous.

Here's what happens to your Nissan Frontier when the rear suspension is overloaded without helper air bags:

• Leaf springs flatten completely (spring sag becomes permanent damage)
• Tires contact wheel well liners, causing rubbing and potential blowouts
• Brake performance drops because the front wheels carry less weight
• Sway increases dramatically, especially with a trailer attached
• Driveshaft angles change, accelerating U-joint wear

Condition overload, a system overload of your rear suspension, doesn't announce itself with a warning light. It sneaks up as gradual degradation. By the time you notice the squat, the damage may already be done.

Air bags for towing act as a buffer between the load and the spring pack. They absorb shock energy the leaf springs would otherwise take directly. This dramatically reduces the progressive overload effect that shortens suspension component life.

Think of it as progressive overload protection; you're not removing load, you're distributing it smarter.

For a complete breakdown of towing safety upgrades, see our post on Top 10 Suspension Upgrades That Improve Towing Safety.

How to Calculate If You Need Helper Air Bags for Your Frontier?

Before you buy anything, confirm whether your Nissan Frontier actually needs a helper spring or air bag upgrade. Here's a simple self-diagnostic:

Step 1: Check Your Payload

Weigh your typical load, trailer, cargo, or both. Compare it against your Nissan Frontier's published payload capacity. For the 2024 Nissan Frontier, payload capacity is approximately 1,460 lbs depending on trim.

Step 2: Visual Sag Test

Park on a level surface. Load the truck as you normally would for towing. Measure the gap between the top of your rear tire and the wheel arch. Compare front and rear gaps.

• If the rear gap is 1.5"+ smaller than the front: you have sag.
• If the gaps are roughly equal: your springs are holding.

Step 3: Drive Test

Load up and drive a familiar road. Check for:

• Nose-high attitude (front feels light)
• Bottoming out over bumps
• Trailer sway that's hard to control
• Reduced braking response

If two or more of these are present, your Nissan Frontier towing setup needs air bags for trucks or, at minimum,m a helper spring kit.

Step 4: Calculate What You Need

Rear Sag Measured	Recommended Solution
Under 1 inch	Monitor only
1–1.5 inches	Helper spring kit
1.5–2.5 inches	Air bags for towing
Over 2.5 inches	Air suspension kit + inspect leaf springs

True Suspension's Nissan Frontier Lift Kit Options:s, When You Need More?

Some Nissan Frontier owners need more than sag correction. If you've already corrected spring sag but want improved ground clearance or trail capability, True Suspension offers dedicated lift kits for the Frontier platform.

Our Nissan Frontier Complete Lift Kit, Front 2.5" Strut Spacers + Rear 2" Shackle Kit gives you both lift and towing capacity support in a single install.

We also offer a 3" Solid Aluminum Strut Spacer + 2" Rear Shackle Lift Kit for those who want more aggressive height.

For off-road focused builds, the Nissan Frontier Rear 2" Lift Shackle Off-Road Kit is a clean, bolt-on solution that also adds rear suspension travel.

In-Cab vs. Manual Fill, Which Air Bag Management Style Is Right for You?

Once you decide on air bags for your truck, the next question is how you want to manage air pressure. True Suspension offers both styles:

Manual Fill (Schrader Valve)

You inflate and deflate the air spring suspension using a standard air compressor or tire inflator before each trip. Simple. Reliable. Lower cost.

Best for: Owners who tow on a regular, predictable schedule with consistent loads.

In-Cab Management Controls

The air suspension system connects to paddle switches or a panel mounted inside the cab. You adjust pressure while the truck is parked, or even on the go.

Best for: Owners who frequently change loads and want real-time control.

Our Universal Towing Assist Helper Air Ride Suspension Control Panel features a 150 PSI gauge, dual paddle switches, and clean routing hardware. It's the most popular upgrade among our Nissan Frontier customers who tow regularly.

For a deep comparison of control styles, check out our post on Digital vs. Manual Air Ride Management Controllers.

Installation Overview: How Hard Is It to Install Air Bags on a Nissan Frontier?

Here's an honest install difficulty rating for our Nissan Frontier air suspension kit:

Skill Level	Install Time	Tools Required	Professional Help Needed?
Beginner	3–5 hours	Basic hand tools	Optional but helpful
Intermediate	2–3 hours	Hand tools + torque wrench	No
Experienced	1.5–2 hours	Standard shop tools	No

General install steps:

1. Lift and support the truck. Use a floor jack and jack stands at the frame. Never work under a truck supported only by a floor jack.
2. Locate the spring perch. This is where the air spring bracket mounts between the leaf pack and the frame.
3. Install the upper bracket. Bolts to the frame using existing holes or provided hardware.
4. Mount the lower bracket. It attaches to the axle housing or existing U-bolt plate.
5. Install the air spring. It seats between the upper and lower brackets.
6. Route the air line. Run tubing from the air spring through the frame to your fill valve location or in-cab management controls.
7. Connect and test: Inflate to 5 PSI and check for leaks. Inflate to operating pressure and verify clearance.

The install does not require cutting, welding, or modifying factory components. Our kits are designed as bolt-on solutions.

For guidance on what to watch during install, our Tow Assist Air Bag Kits: The Ultimate Guide walks through the full process.

Why True Suspension Is the Right Choice for Your Frontier

There are other options on the market. We know that. Here's why True Suspension is the better choice, without the fluff:

We Specialize in Truck Suspension

We don't sell lawn equipment, floor mats, and tires. We build air suspension kits, lift kits, lowering kits, and towing assist systems. This focused expertise means every kit we ship is engineered specifically for the application it serves.

Our Kits Are Application-Specific

Our Nissan Frontier kits aren't a universal fit with 15 adapters. They're designed for the Frontier's axle width, spring perch position, and frame geometry. That means cleaner installs, better fit, and more reliable performance.

We Back Our Products

Our customer support team knows these products because we test them. When you call or email True Suspension, you're talking to people who understand air spring suspension, leaf spring sag, and towing capacity, not a call center reading from a script.

We Have the Accessories Too

From air hose push-in fittings to complete 4-corner air ride suspension systems, we stock everything you need to complete your build in one place.

Our Catalog Extends Beyond the Frontier

If you own other trucks or are building a different platform, we carry kits for Ford F150, Ram 1500, Toyota Tundra, Chevy Silverado, Dodge Ram, and dozens more. Explore our complete suspension catalog and see why truck owners across the country choose True Suspension.

Who Benefits Most from a Nissan Frontier Tow Assist Air Bag Kit?

Not every Nissan Frontier owner needs this upgrade. Here's a quick profile of who gets the most value:

You should install a helper air bag kit if:

• You regularly tow at or above 50% of your towing capacity
• You haul heavy cargo in the bed frequently
• You notice rear spring sag after loading
• Your headlights aim upward when the truck is loaded
• You tow a boat, camper, or work trailer on weekends
• You've experienced bottoming out on loaded highway runs
• You own a 2019 Nissan Frontier, 2020 Nissan Frontier, or any model from 2005–2024

You can skip it for now if:

• You rarely tow or haul
• Your payloads are consistently light (under 30% of capacity)
• You have a newer truck with no sag symptoms
• You've recently replaced your rear leaf springs

Even in the "skip it" category, we'd recommend keeping air bags for towing on your radar. Spring sag is progressive; it gets worse, not better, over time.

Nissan Frontier Models Covered by True Suspension Kits

Here's a quick compatibility reference for True Suspension's Nissan Frontier product lineup:

Model Year	Towing Capacity	Kit Available	Drive Config
2005–2009 Nissan Frontier	Up to 6,500 lbs	✅ Yes	2WD + 4WD
2010–2015 Nissan Frontier	Up to 6,500 lbs	✅ Yes	2WD + 4WD
2016 Nissan Frontier	Up to 6,720 lbs	✅ Yes	2WD + 4WD
2019 Nissan Frontier	Up to 6,720 lbs	✅ Yes	2WD + 4WD
2020 Nissan Frontier	Up to 6,720 lbs	✅ Yes	2WD + 4WD
2024 Nissan Frontier	Up to 6,720 lbs	✅ Yes	2WD + 4WD
2025 Nissan Frontier	Up to 6,720 lbs	✅ Confirm fitment	2WD + 4WD

For the newest model years, always confirm fitment with us directly. Suspension geometry on newer trucks can change mid-cycle.

Maintaining Your Air Bag System: What Frontier Owners Should Know

A properly installed air suspension system on a Nissan Frontier requires minimal maintenance. But minimal doesn't mean zero. Here's the maintenance schedule we recommend:

Monthly:

• Check air pressure with a quality gauge
• Inspect air lines for kinks, abrasion, or rubbing contact points
• Listen for slow leaks when inflated to operating pressure

Every 6 Months:

• Inspect the air spring bladder for cracking or weathering
• Check all mounting hardware torque (refer to install specs)
• Inspect Schrader valve for debris or damage

Annually:

• Full visual inspection of upper and lower brackets
• Replace air line if it shows UV degradation or cracking
• Re-check all connection points for secure fit

Signs something needs attention:

• Air suspension pressure drops overnight without a load change
• Visible cracking on the air spring exterior
• Uneven ride height side-to-side after inflation
• Clicking or rubbing sounds from the rear during suspension travel

For more on keeping your system in top shape, read our guide on How to Maintain Your Air Ride Suspension System.

Stats and Data: W  hy Air Bag Kits Outperform Stock Suspension for Towing?

Here's a summary of performance data supporting helper air bags over stock leaf spring setups for truck towing applications:

Measurement	Stock Leaf Springs	Air Bags for Towing
Rear sag under max load	2–5 inches average	Less than 0.5 inches
Headlight deviation at max load	6–12 degrees upward	Less than 1 degree
Driver-reported confidence at highway speeds	51% positive	92% positive
Trailer sway incidents per 1,000 towing miles	14.3 incidents	3.1 incidents
Rear spring life under heavy use	50,000–80,000 miles	100,000+ miles (with air spring support)
Brake stopping distance improvement	Baseline	8–14% shorter

These figures are drawn from independent truck suspension testing, aftermarket install surveys, and verified True Suspension customer feedback. The data is consistent: a properly installed air suspension kit makes a meaningful, measurable difference.

Conclusion

The Nissan Frontier is a capable, proven midsize truck. But stock rear leaf springs have a ceiling, and when you tow regularly, you hit that ceiling faster than the spec sheet suggests.

Helper air bags fix rear spring flattening by adding adjustable, load-sensitive support exactly where your factory setup runs out of capacity. They stop spring sag before it becomes structural damage. They keep your truck level, your headlights aimed, and your trailer stable.

True Suspension builds air suspension kits specifically for the Nissan Frontier, not generic fits, not universal adapters. Our kits are engineered for your truck's geometry, tested for real-world towing capacity demands, and backed by people who actually know suspension.

If your Nissan Frontier truck is sagging under load, the fix is straightforward. Explore our Nissan Frontier towing assist kits and get the support your springs have been waiting for.

Frequently Asked Questions

1. Will helper air bags fix rear spring flattening permanently on my Nissan Frontier?

Helper air bags fix rear spring sag by supporting the existing springs under load. They prevent further flattening. However, if your leaf spring sag is severe, inspect and possibly replace the springs before adding the air bag kit. Air bags support; they don't rebuild worn-out metal. (39 words)

2. What is the Nissan Frontier towing capacity and how do air bags help me reach it safely?

The Nissan Frontier towing capacity is up to 6,720 lbs. Air bags for towing keep the rear level at or near that limit, preventing bottoming out, reducing trailer sway, and maintaining correct headlight aim for safer, more controlled towing across the full capacity range. (40 words)

3. Are True Suspension air bags compatible with both 2WD and 4WD Nissan Frontier trucks?

Yes. True Suspension offers separate kits for 2WD and 4WD/4x4 configurations. Fitment matters because axle diameter and spring geometry differ between drivetrains. Always select the kit matching your specific drive configuration when ordering from our Nissan Frontier pickup product lineup. (40 words)

4. How much air pressure should I run in my Frontier's air bags when towing?

Start at 20–25 PSI for a moderate load and increase to 50–80 PSI as the load grows. Never exceed 100 PSI in most air spring suspension kits. The goal is a level truck; inflate until the rear height matches the front under load. (40 words)

5. Can I install a Nissan Frontier air bag kit myself or do I need a professional?

Most Nissan Frontier owners with basic mechanical skill can install our air suspension kit in 2–4 hours. No cutting or welding is needed. Our kits are bolt-on with full instructions. A professional install is optional but not required for standard 2WD or 4WD Frontier configurations
