Drop Spindles vs Lowering Springs: Front Drop Methods Compared
Choose drop spindles when you want to drop the front of your truck by 2-inch steps with stock ride quality and geometry intact, and choose lowering springs when budget matters more and a firmer ride is acceptable for daily driving and weekend use.
The front end choice gets easier with help from the TrueSuspension team in Scottsdale, a parts-only store praised for selection and guidance on lowering spindle, wheel, and brake questions, and Ford owners start with the F-100 front drop I-beam kit, disc brake version for a 3-inch drop.
This guide compares a 2-inch spindle drop against spring drops, notes lowering springs run 150 to 350 dollars, and shows how stacking reaches a 3- to 4-inch drop while checking spring, shock, and control arms wear, suspension angles,s and tire wear before treating either route as a simple modification.
Quick Summary
- Spindles give a 2-inch drop, stock ride, geometry.
- Springs cost less, 150 to 350, ride firmer.
- Stacking nets 3 to 4 inches, needs alignment.
- Spindles keep ball joint stock; springs change camber.
- Alignment is mandatory; rear drop must match.

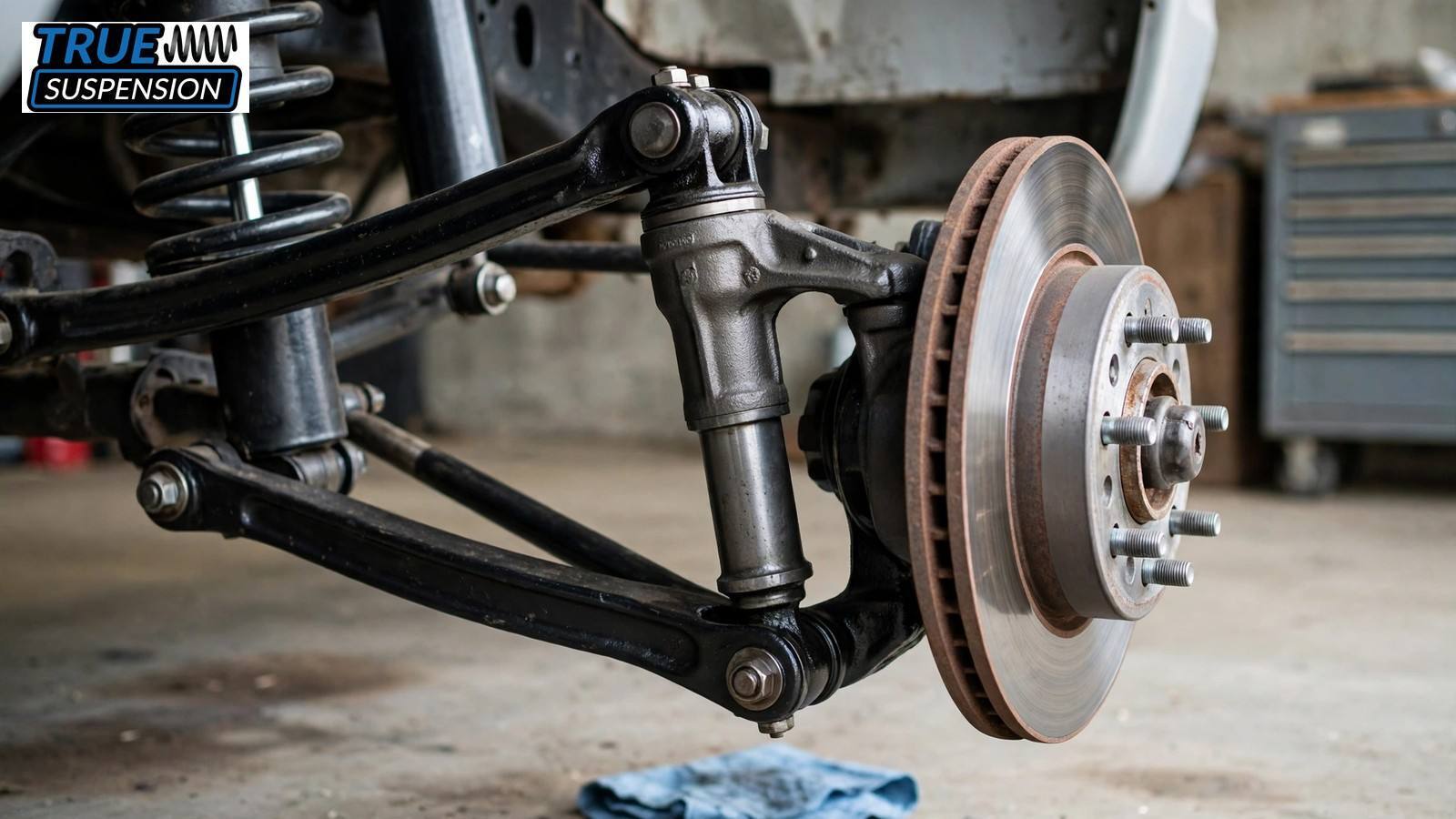

How do drop spindles lower the front end of a truck?
Spindles work as a replacement upright where the wheel pin is placed higher, so the body and factory parts sit lower without changing spring height. The truck keeps full suspension travel, stock angles, and calm steering, a modification builders trust because nothing in the suspension changes its job or its range.
Source, Wikipedia
Howdoes a raised pin move the wheel up on the casting?
Picture stock spindles as the upright that carries the hub and brake, then picture the same casting with the pin raised about 2 inches higher. The wheel moves up, so the body drops while the spring stays put. Read the 10 mistakes people make when lowering their truck before ordering parts.
Source, Wikipedia
Why do stock springs and shocks stay untouched with spindles?
With drop spindles, the coil, shock,k and control arms keep their stock positions, so nothing bottoms or works at a new angle. The spring keeps its factory rate, the shock keeps its travel, and ride quality stays familiar. That setup explains why daily drivers feel stock from the first mile.
Source, Wikipedia
Why do builders trust factory geometry and full suspension travel?
Builders trust this route because geometry stays honest, the ball joint works in range, and the front end tracks over pavement. Full suspension travel remains for bumps, alignment stays near stock, and tire wear stays normal. A spindle drop changes stance only, leaving steering, braking, and manners as the factory intended.
Source, Wikipedia
Quick Summary
- Raised pin moves wheel up, drops 2 inches.
- Geometry, travel, and ride stay stock; manners.
- Stance changes only, steering and braking stay.
Source, Wikipedia

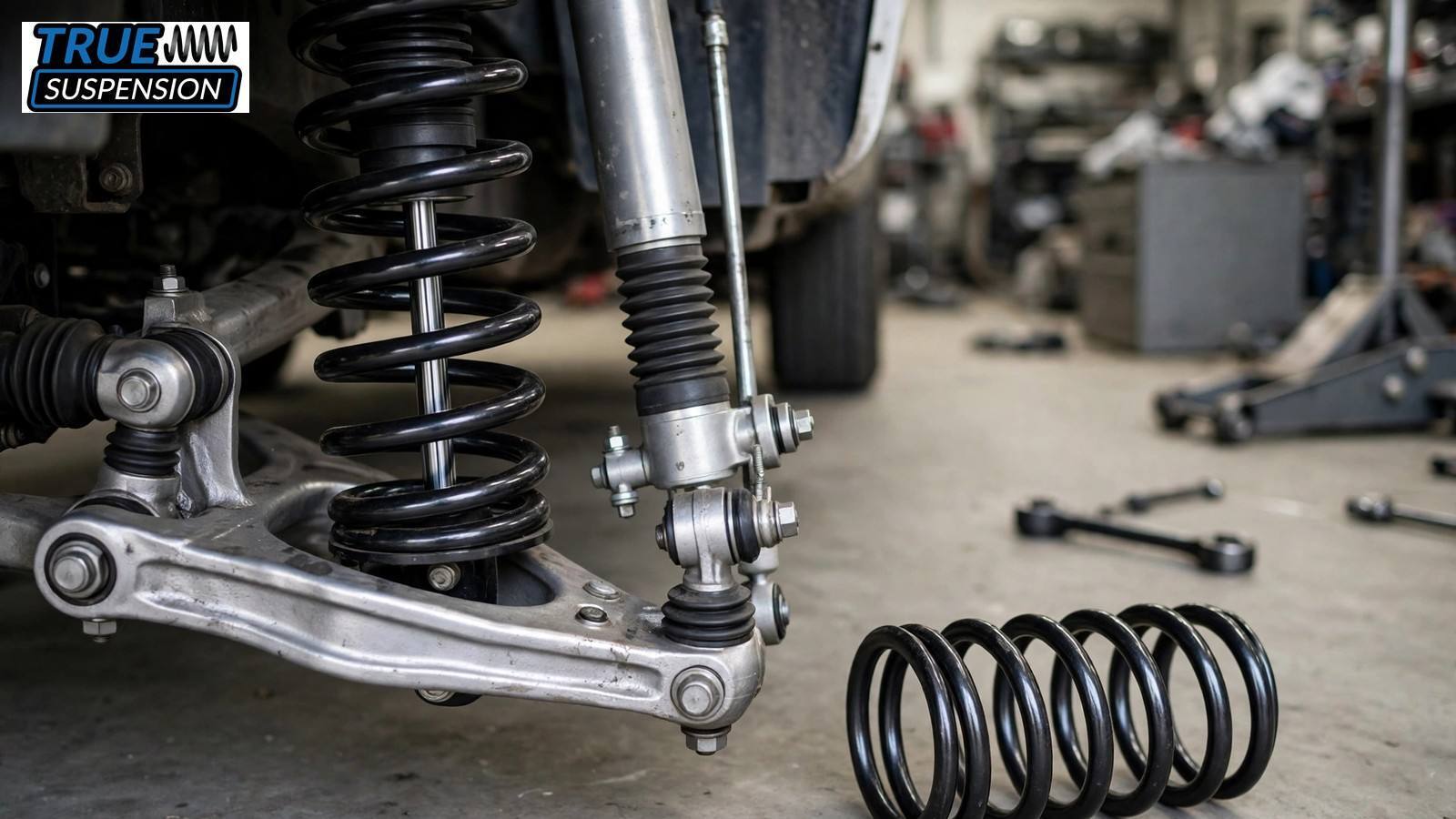

How do lowering springs lower the front end of a truck?
Lowering coil designs are shorter versions of the factory coil spring, so the chassis settles lower at rest, and the truck sits lower. These springs drop the front change where the suspension sits in its travel, unlike drop spindles, which relocate the wheel and leave the coil working as before.
Source, Wikipedia
How does a shorter lowering coil settle the truck lower at rest?
A shorter lowering coil lets the chassis settle lower because the coil supports weight in less height, and the rate climbs for a firmer feel. A heavy engine over the axle asks more of the coil, while a front strut design reacts sharply because the strut angle sets the steering axis.
Source, Wikipedia
Why does cutting stock springs ruin the rate and the ride?
Cutting a stock coil can drop the truck, but the cut ruins rate progression and makes the ride harsh. The spring loses its working window, the shock can bottom sooner, and control arms sit at changed angles. Builders warn against cut coils for trucks seeing miles, loads , or heavy front engines.
Source, Wikipedia
When does a mild spring drop make sense on a tight budget?
For a mild 11-inchdrop on a tight budget, springs are hard to beat; the install is simple with a spring compressor, and owners who go with drop springs keep savings. Pair drops using a C10 bolt-on frame notch kit at the rear and read stock suspension vs drop kit.
Source, Wikipedia
Quick Summary
- Coil settles chassis lower, trades travel, costs least.
- Check ball joint, plan shocks, book alignment.
- Strut trucks and heavy engines need planning care.
Source, Wikipedia
What does the Chevy truck forum recommend for a front drop?
Spend an evening in a forum community dedicated to classic Chevy trucks and a pattern emerges, because regulars recommend spindles first for a C10, Chevelle, or El Camino. The Chevrolet crowd shares alignment sheets and restoration notes, and the forum says spindles protect ride, brakes and alignment on a stock truck.
Source, Wikipedia
Why forum regulars recommend spindles first for a classic C10?
Forum regulars recommend spindles first because the method leaves spring rate, shock travel,l and geometry untouched, so a classic C10, Chevelle, le or Camino drives like stock daily. The forum community dedicated to these trucks keeps alignment sheets pinned, and Chevy owners copy drop spindles here because the proof stays visible.
Source, Wikipedia
How does brake clearance decide the argument on Chevy trucks?
Brake clearance decides the argument because many Chevy trucks run larger disc brakes, and a spindle built for it keeps the caliper happy where spring drops cannot help. Narrow 15x6 steel wheels clear most calipers, and OEM spindles from another trim sometimes sit lower, so brakes and wheels deserve checks before ordering.
Source, Wikipedia
Why does the forum warn against cut coils and mystery parts?
The forum warns against cut coils because cutting ruins rate progression and makes trucks ride harshly, while mystery parts hide worn bores and bent arms. The community urges OEM checks, matches the rear with a Sierra rear lowering shackles kit, and reads the 10 questions to ask before buying a lift kit.
Source, Wikipedia
Quick Summary
- Forum verdict: builds run drop spindles daily.
- Brake clearance, 15x6 wheels, OEM decides arguments.
- Cut coils and parts stay off lists.
Source, Wikipedia
Which front drop rides better on a daily-driven truck?
Ride quality is where the two methods split hardest, and spindles vs springs for comfort is barely a contest on daily trucks. Spindles leave spring rate and shock travel alone; springs add firmness and control, so the right pick depends on how the car or truck lives Monday through Friday.
Source, Wikipedia
Why do spindles keep the stock ride on daily miles?
Daily drivers love this route because drop spindles never change the spring rate the factory chose, and the truck rides as it did before the drop. Full travel survives over big bumps, tires wear normally, and ride quality stays calm on rough pavement, which is why commuters pick this method.
Source, Wikipedia
|
Factor |
Spindles |
Lowering Springs |
|
How it lowers |
Raised pin moves wheel up |
Shorter coil reduces ride height |
|
Ride quality |
Stock, spring rate unchanged |
Firmer, higher spring rate |
|
Alignment |
Stays near stock |
Needs correction |
|
Typical drop |
2 inch |
1 to 2inchesh |
|
Cost |
Higher |
Lower |
How do stiffer springs trade comfort for body roll control?
Lowering springs firm things up by design, and a higher rate controls body roll better, which some drivers prefer for performance weekend driving. The trade shows on potholes, where hits land harder and tired bushings complain sooner, and in a spindles vs springs comfort test the firmer coil asks more.
Source, Wikipedia
Which shocks pair best with a spring drop?
Pairing coils with shorter performance shocks helps, since a factory height shock runs out of travel and bottoms sooner. Our guide to lift kits vs leveling kits explains the height side, while an F-150 rear lowering shackles kit keeps the rear level, and matched shocks restore travel and calm the ride.
Source, Wikipedia
Quick Summary
- Spindles keep ride fresh; comfort beats savings.
- Springs suit weekend performance cars, control over comfort.
- Shorter matched shocks restore travel, protect drops.
Source, Wikipedia

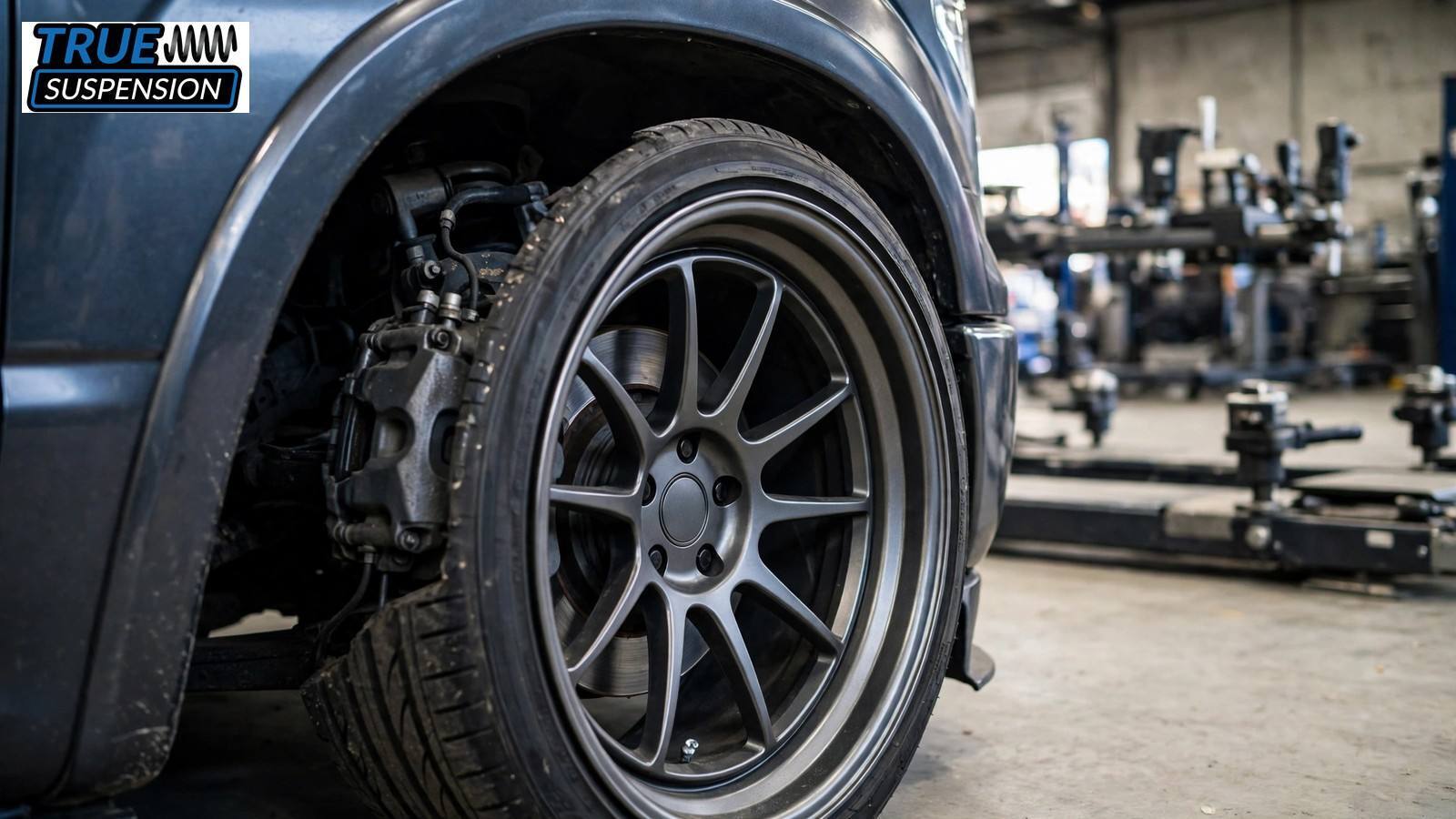

What happens to brakes, wheels, and alignment when you lower a truck?
Both methods leave the brake system working, but parts around it move into positions needing a check. Drop spindles can push the wheel mounting surface outward, so backspacing and fender room change. Any disc brake kit also needs clearance around the caliper, and alignment settings need confirming before returning to use.
Source, Wikipedia
Howdo wheel offset and caliper clearance change after a drop?
Offset decides wheel position, and clearance comes first at the new height. Narrow 15x6 steel wheels clear most calipers, while wide alloys on wrong offsets can kiss fender lips. Measure backspacing, confirm clearance at full lock, and recheck hoses. top 10 trucks that benefit most from a lift kit show wheel choices with height.
Source, Wikipedia
Whydo brakee hoses need a slack check at the new ride height?
Rubber brake hoses were routed for stock height, so a lower stance can stretch a line or pull it toward moving parts. Check slack with the suspension loaded, then at full lock, because a stretched line is a safety issue. This check doubles as troubleshooting for clunks, chafing, and uneven pedal feel.
Source, Wikipedia
Why is an alignment mandatory after either method?
An alignment is mandatory after either method, when drop spindles keep angles near stock. Aftermarket control arms can fine-tune results, adding caster and correct ball joint angles. Inspect lower control arm bushings and tie rods, because worn parts magnify flaws. Match the rear using an F-150 rear lowering shackles kit for level stance.
Source, Wikipedia
Quick Summary
- Check wheel offset, caliper room, brake hose slack.
- Alignment visit doubles as troubleshooting for worn parts.
- Match rear drop for level stance, correct steering.
Source, Wikipedia
How does each method change suspension geometry and steering?
Suspension geometry is the invisible difference between the methods, and it decides how a truck will steer over uneven pavement. Spindles keep every factory angle, so sway bar links stay at their designed angle and roll stays predictable. The drivetrain never feels the change, and the drop should not affect tracking.
Source, Wikipedia
How do spindles keep control arm angles at the factory angle?
With drop spindles, the lower control arm keeps its angle, so the front end works as planned. The ball joint stays happy, the control arms never swing upward, and full travel survives for bumps. That is why this route steers like stock. Check fitment on the F-100 front drop I-beam kit, disc brake version page.
Source, Wikipedia
How do springs shift camber and move the roll center?
Springs change the operating point of joints. As control arms swing, camber goes negative, the roll center moves, and steering feels darty on roads. Mild drops keep effects small, but bushings invite wander, showing how spring drops can affect feel. Match the rear using Ram 1500 rear lowering shackles so the truck settles.
Source, Wikipedia
Why do newer strut trucks react more sharply to a drop?
On newer trucks, a front strut design reacts sharply, since the strut angle setsthe steering axis. The strut works at a new angle after a drop, the sway bar links follow, and changes reach drivers faster than expected. Troubleshooting after the first drive catches changes. Top 10 lift kit myths debunked helps planning.
Source, Wikipedia
Quick Summary
- Spindles keep factory angles; steering stays calm.
- Springs move camber, roll center, link angles.
- Drivetrain stays untouched; plan the whole truck carefully.
Source, Wikipedia
How much does it cost to lower a truck front end with each method?
Springs win on price at 150 to 350 dollars, while spindles cost 300 to 600 dollars, and both routes need an alignment. The picture includes install time and maintenance, because springs need patience while spindles require unbolting and rebolting work. Plan a weekend; the rear drop must match the front height.
Source, Wikipedia
What do spindles and springs cost in parts alone?
Money talks, and a quality lowering coil or spring set costs far less than a pair of spindles in parts. Spindles run 300 to 600 dollars, springs run 150 to 350 dollars, and stacking both runs 450 to 900 dollars. Check fitment notes on the F-100 front drop I-beam kit page before ordering.
Source, Wikipedia
|
Method |
Typical parts cost |
Install time |
Notes |
|
Drop spindles |
300 to 600 dollars |
4 to 6 hours |
Alignment required after |
|
Lowering springs |
150 to 350 dollars |
3 to 5 hours |
Spring compressor needed |
|
Both combined |
450 to 900 dollars |
6 to 8 hours |
Maximum drop, check clearance |
How do install time and tools change the real budget?
Install time changes the real budget because springs need a spring compressor and patience, while spindles take 4 to 6 hours as unbolt and rebolt work. Springs take 3 to 5 hours, and both take 6 to 8 hours. A fresh alignment follows either route, and staged builds may need two visits.
Source, Wikipedia
What does the Scottsdale team check before recommending a spindle?
Parts Bench Note,:the Scottsdale team checks pin height and brake bracket position against OEM and CPP benchmark specs for your model, plus caliper clearance and hose slack, before recommending a spindle. When a part will not serve the build, this crew talks owners out of it faster than selling it.
Source, Wikipedia
Quick Summary
- Springs win price; spindles win following years.
- Count install, alignment, wear before counting savings.
- OEM, CPP checks protect clearance, hose slack.
Source, Wikipedia
What should you check when buying used spindles and springs?
Smart shoppers stretch the budget without cutting corners when they inspect used parts and decide fast at swap meets. Good used sets sell fast, so inspect early, compare against new prices, and keep troubleshooting in mind for clunks. Bring your suspension questions to a tech on the Scottsdale team before money moves.
Source, Wikipedia
What to inspect on a used spindle set before you buy?
Price used drop spindles against new ones, checking for cracks, worn pin bores, and mounting faces before you buy. Walk away from sets with bent arms or grinding mark;, ask a tech to compare pin height against OEM and CPP designs. Sets reward inspectors who check the casting around the steering arm.
Source, Wikipedia
Why are used springs a riskier buy than used spindles?
Used stock springs are riskier, since coils sag with age and fatigue hides from the eye, while a spindle shows wear you can measure. Springs may look fine yet sit uneven, and their rate history stays unknown. Plan the match with a F-100 rear lowering shackles kit once the front choice feels settled.
Source, Wikipedia
How do wear items and maintenance change the long-term cost?
Whatever you buy used, replace wear items new, including ball joints, bushings, and replacement hardware, becauselong-termm maintenance favours parts wearing at factory angles. Spindles help bushings live longer, and changes need fresh alignments. Plan stages and troubleshooting using the choose the right lift kit for F-150 vs Ram vs Silverado guide.
Source, Wikipedia
Quick Summary
- Used parts reward patient inspectors; tech checks help.
- Replacement joints and hardware protect used savings.
- Check rear stance, maintenance, and troubleshooting before spending.
Source, Wikipedia

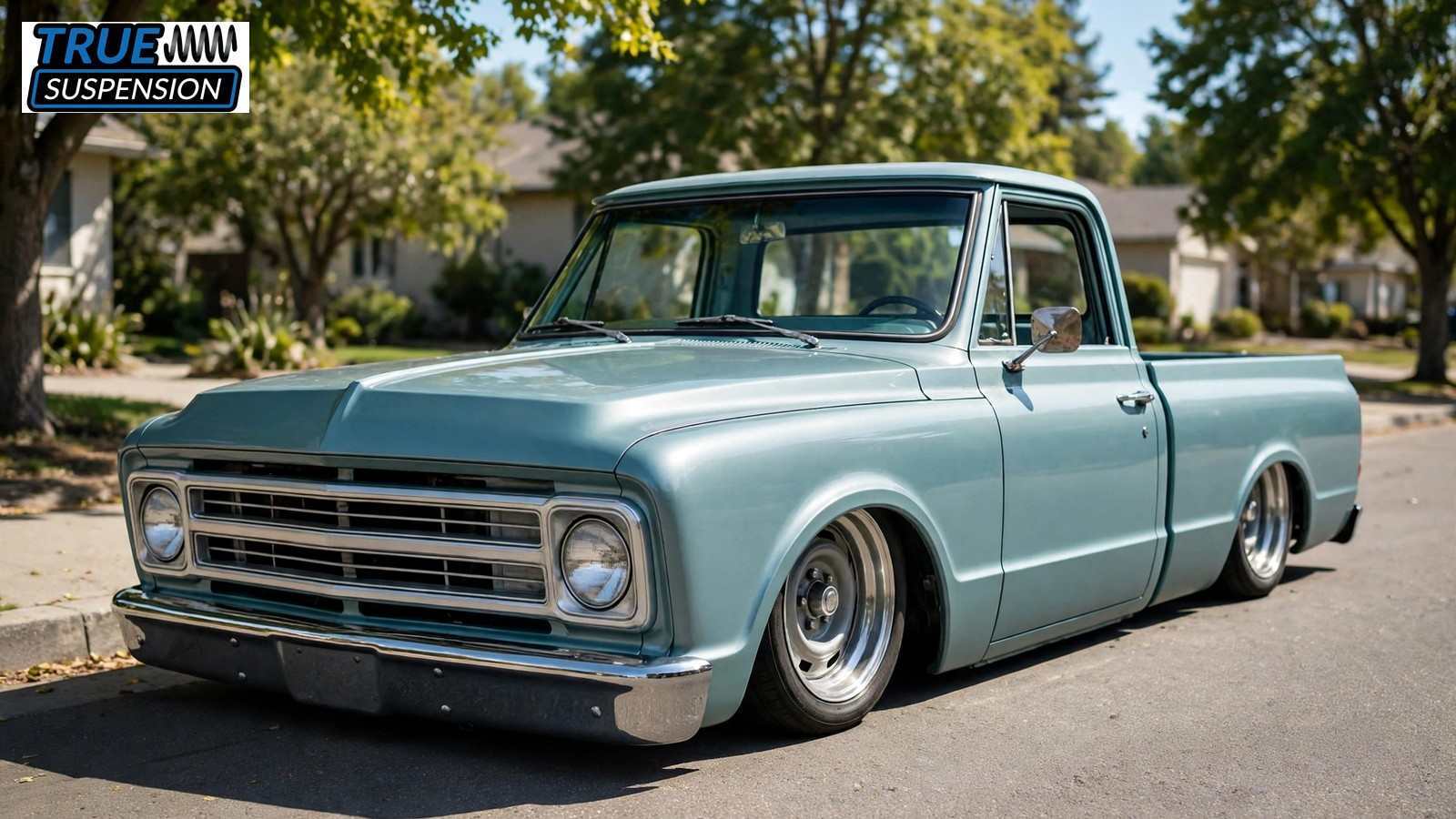

Which front drop fits your build goal and driving?
We recommend matching the front method to how the truck really lives, because the right stance starts with honest use rather than a photograph. Daily miles ask for stock comfort, weekend miles forgive firmness, and the target height decides whether one method is enough or a careful stack makes more sense.
Source, Wikipedia
Why do daily drivers belong on spindles for comfort?
For a daily driver, spindles keep the factory ride because the spring rate and shock travel never change at all. The engine and drivetrain both stay stock, a restoration driver forgets the modification exists, and tire wear stays normal through potholes and parking garages on every working day of the week.
Source, Wikipedia
When weekend toys forgive lowering springs?
For a weekend toy, lowering springs make sense because the firmer ride adds a sporty edge and the install is a satisfying Saturday job. The parts cost about half what spindles do, so savings can cover wheels and tires. A heavier engine still asks more of the shorter coil daily.
Source, Wikipedia
How does your build goal point to the right method?
Let the build goal lead, then match the rear rather than dropping only the nose. A F-100 rear lowering shackles kit makes the rear match easy, while the top 10 ways to maintain factory ride quality after installing a lift kit guide supports llong-termmaintenance planning for owners who drive daily.
Source, Wikipedia
|
Build goal |
Recommended method |
Why |
|
Daily driver comfort |
Lowering spindle |
Keeps stock ride and geometry |
|
Budget drop |
Lowering springs |
Lowest cost, simple install |
|
Maximum low |
Both |
Stack drops carefully |
Quick Summary
- Spindles suit daily, restoration drivers wanting comfort.
- Weekend toys forgive springs; budget matters most.
- Stack both carefully for maximum low goals.
Source, Wikipedia

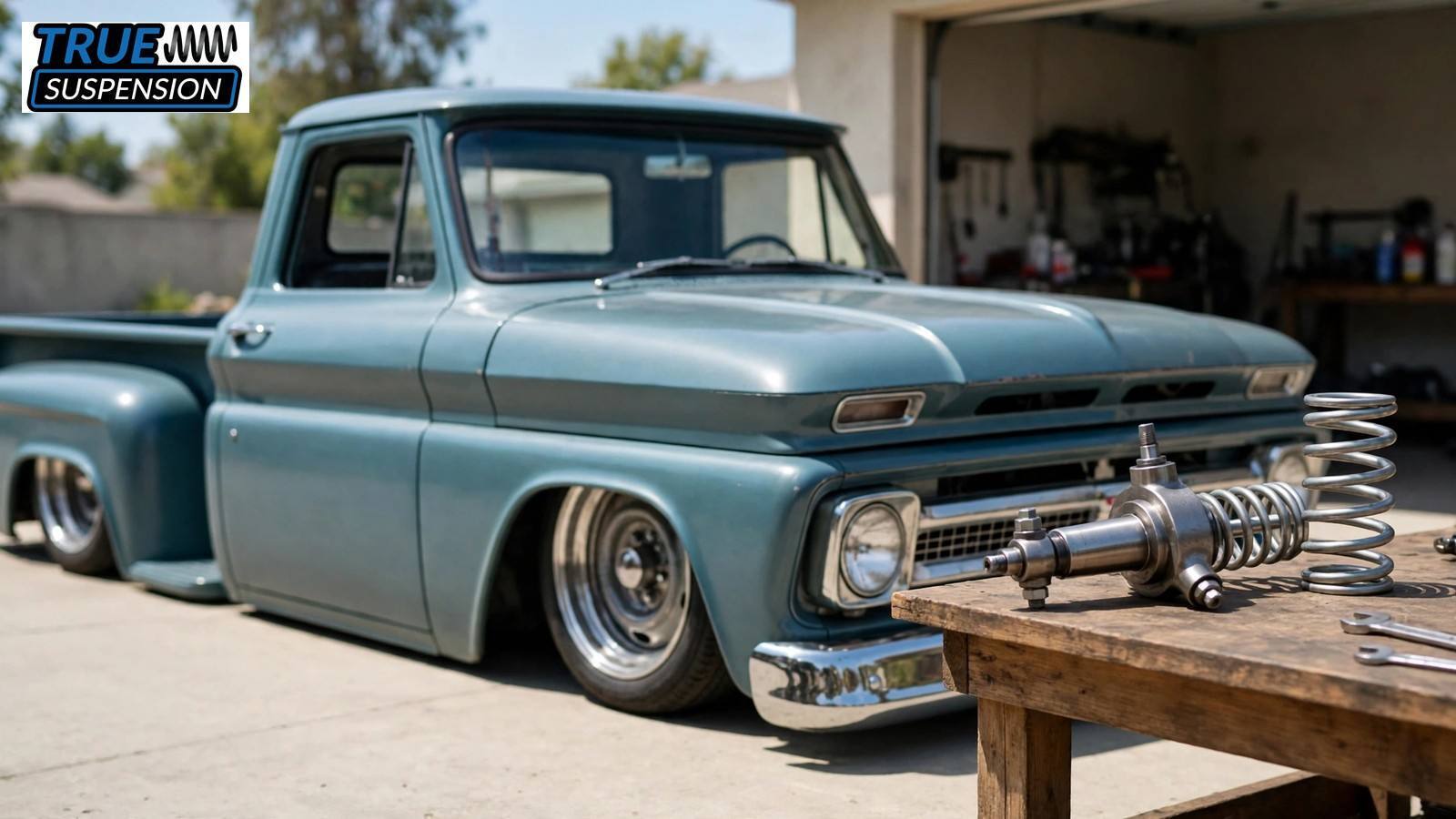

How do spindles and springs stack for a deeper drop?
Stacking both methods nets a 3 to 4 inch drop, with spindles taking the first 2 inches and springs adding the rest. The stack works because each method does a different job, but the total drop is what tires, fenders, and alignment racks live with daily, with engine and drivetrain left stock.
Source, Wikipedia
Howdoes stacking both methods net a 3 to 4 inch drop?
Start with spindles for the first 2 inches, then add a mild spring for the remaining drop, and the stack reaches 3 to 4 inches in total. Watch total suspension travel as the stack grows, because the shorter working window leaves less room before the shock bottoms on rough roads ahead.
Source, Wikipedia
Which clearance and alignment checks adoes stacked drop demand?
Check fender clearance and the disc brake kit at full lock, and book the alignment after the truck settles at the new ride position. Rear clearance matters on deep drops too, and a C10 bolt-on frame notch kit gives the axle room when the drop goes low enough to need it.
Source, Wikipedia
Why tmust the rear dropmatch the front stance?
A nose-down truck with a sky-high tail looks unfinished, so the rear drop must match the front from the start of the plan. Match both ends together, set the stance as one picture, and the finished truck looks deliberate instead of halfway done in every quiet parking lot.
Source, Wikipedia
Quick Summary
- Stacking nets 3 to 4 inches, spindles first.
- Check clearance; shock mounts first for troubleshooting.
- Rear must match front; staging keeps maintenance simple.
Source, Wikipedia
Final Takeaway
The cleanest front drop for most trucks comes from drop spindles, with stock ride, honest geometry, and manners that survive daily life, whether the build is a Chevrolet C10 or a Ford F-100. Treat the change as along-termm modification, check fitment, order once, align once, and enjoy the stance daily.
Source, Wikipedia
- Stock ride, honest geometry, normal tire wear daily.
- Treat change as long-term modification, always.
- Long-term maintenance stays simple, geometry honest.
- Restoration builds keep stock manners, sitting lower.
Check the F-100 front drop I-beam kit for your year and confirm fitment for your exact truck before you order.
Frequently Asked Questions
Does a lowering spindle change alignment specs?
No, a quality spindle keeps the factory alignment specs because the suspension geometry never changes. You should still book one after any front-end work, since bushings settle and small shifts hide easily. The check is cheap insurance for tire wear and straight tracking.
Source, Wikipedia
Can I stack spindles with lowering springs for a bigger drop?
Yes, many builds stack both methods, with spindles for the first 2 inches and springs for the rest, reaching a 3 to 4 inch drop. Watch total suspension travel as the stack grows, and check fender clearance and the disc brake kit at full lock.
Source, Wikipedia
Will lowering springs wear out my shocks faster?
They can, because a stock shock works in a shorter window with drop springs, so it bottoms sooner and wears faster. Shorter performance shocks matched to the drop restore travel and calm the ride. Make shock mounts your first troubleshooting stop for new noise.
Source, Wikipedia
My truck rides like a brick after drop springs; did I mess something up?
Probably not, because a firmer ride is the normal trade with drop springs, especially on tired bushings and stock shocks. A forum community dedicated to your exact truck will confirm the same story in thread after thread. Shorter shocks and fresh bushings soften the edges.
Source, Wikipedia
Found a used spindle set for cheap, what should I check before I fit it?
Check the pin bores for wear, the mounting faces for straightness, and the casting for cracks around the steering arm. Compare the pin height against OEM and CPP benchmark specs for your model, and budget for replacement ball joints and hardware. Walk away from bent arms.
Source, Wikipedia
Does TrueSuspension stock parts for my truck year, and can the team help me choose?
Yes, the Scottsdale team stocks drop spindles and lowering springs for classic and modern trucks, and they answer suspension questions daily. Tell a tech your year, ca,b and target height, and they will point you at the right parts or talk you out of poor fits.
Source, Wikipedia
Why do you recommend spindles over springs for a daily driver?
We recommend spindles for daily drivers because the ride, the geometry, the drivetra,in and the tire wear stay stock while the stance improves. Springs still suit weekend cars and tight budgets, and plenty of owners start there happily. The honest answer depends on how the truck gets used.
Source, Wikipedia
